- •Tri-Band Six-Stream Outdoor WiFi 7: Up to 9.3 Gbps.†
- •6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.
- •True Tri-Band Omnidirectional Coverage: 300m2 (3,200ft2) recommended coverage*
- •Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarized antennas.
- •Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- •Advanced Features: Centralized management, mesh, and seamless roaming.§
| Functionaliteit van de Hardware |
|---|
| Interface | 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE) |
|---|
| Knop | Reset |
|---|
| Uitgangsvermogen | • 802.3at PoE |
|---|
| Energieverbruik | • EU: 21.5W (for PoE)
• US: 23W (for PoE) |
|---|

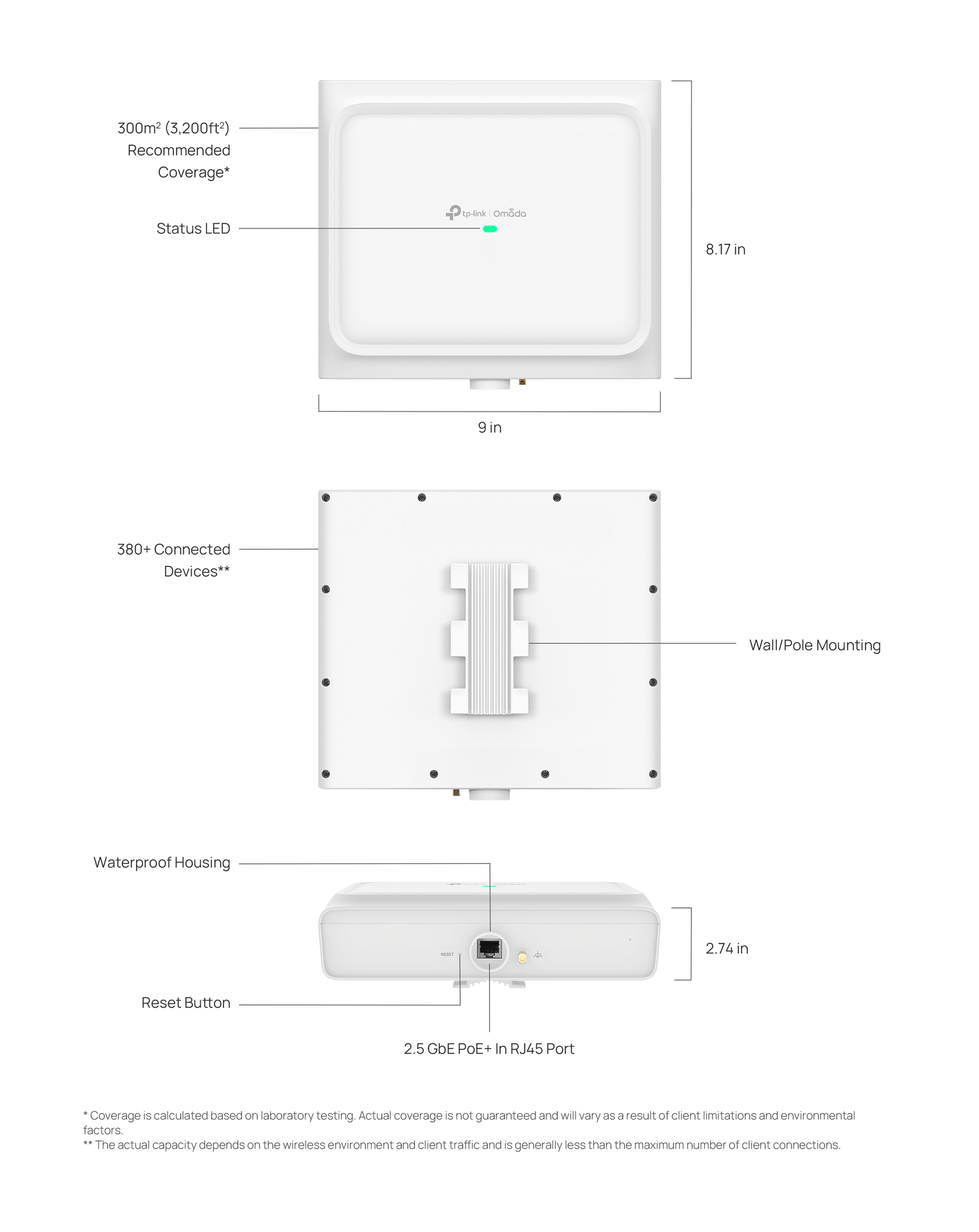

| Afmetingen ( B x D x H ) | 9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm) |
|---|
| Antenne | • 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 6 dBi
• 6 GHz: 2× 6 dBi |
|---|
| GNSS | L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals
Receive sensitivity: -164dBm (tracking)
GPS antennas: Integrated 3dBi omnidirectional antennas |
|---|
| Bluetooth | BLE 5.2 |
|---|
| Weatherproof Enclosure | IP68 |
|---|
| Montage | Pole/Wall Mounting (Kits included) |
|---|
| Draadloze Functies |
|---|
| Coverage | 300m2 (3,200ft2) Recommended Omnidirectional Coverage |
|---|
| Concurrent Clients | 250+6 |
|---|
| Standaarden voor Draadloze Netwerken | IEEE 802.11be/ax/ac/n/g/b/a |
|---|
| Frequentie | 2.4 GHz, 5 GHz, 6 GHz |
|---|
| Overdrachtssnelheid | • 802.11be: 8.6 Mbps to 5765 Mbps (MCS0-MCS13, NSS = 1 to 2 HE20/40/80/160/240/320)
• 802.11ax: 8.6 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)
• 802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0-MCS9, NSS = 1 to
2 VHT20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|---|
| Draadloze Functies | • 1024-QAM
• Multiple SSlDs
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• MLO
• 320MHz
• Omada Mesh3
• Seamless Roaming(802.11k/v/r)3
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Static IP/Dynamic lP |
|---|
| Draadloze Beveiliging | • Captive Portal Authentication3
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
|---|
| Overdrachtsvermogen | • CE: <20 dBm (2.4 GHz, EIRP), <28 dBm(5 GHz, band 3, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz), <25 dBm(6 GHz) |
|---|
| Beheer |
|---|
| Omada App | Yes |
|---|
| Centralized Management | Yes, through
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
|---|
| Cloud Access | Yes, through
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
|---|
| Email Notificaties | Yes |
|---|
| Management MAC Toegangscontrole | Yes |
|---|
| SNMP | v1, v2c |
|---|
| System Logging Local/Remote Syslog | Yes |
|---|
| SSH | Yes |
|---|
| Web-based Management | Yes |
|---|
| L3 Management | Yes |
|---|
| Multi-site Management | Yes |
|---|
| Management VLAN | Yes |
|---|
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
|---|
| Overige |
|---|
| Certificatie | CE, FCC, RoHS |
|---|

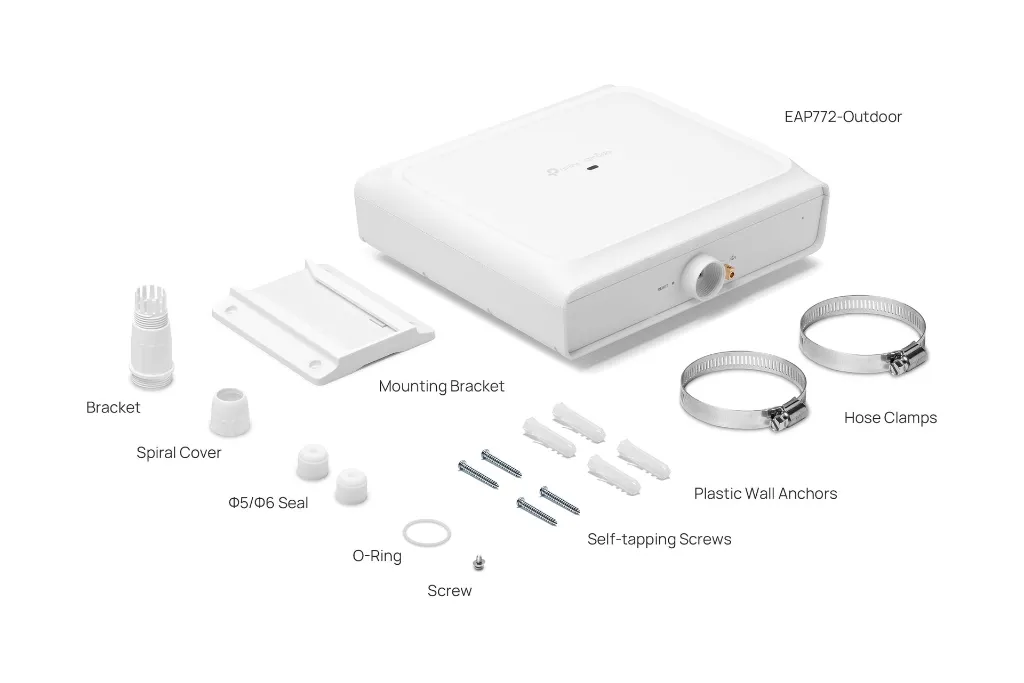

| Pakketinhoud | • Access Point EAP772-Outdoor
• Power Cord
• Mounting Kits
• Installation Guide |
|---|
| Systeemvereisten | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
|---|
| Omgeving | • Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
|---|
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡ Use of WiFi 7 (802.11be), WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
§ Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.
* Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
** The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
