- •Tri-Band Six-Stream Outdoor WiFi 7: Up to 9.3 Gbps.†
- •6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.
- •True Tri-Band Omnidirectional Coverage: 300m2 (3,200ft2) recommended coverage*
- •Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarized antennas.
- •Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- •Advanced Features: Centralized management, mesh, and seamless roaming.§
| Functionaliteit van de Hardware |
|---|

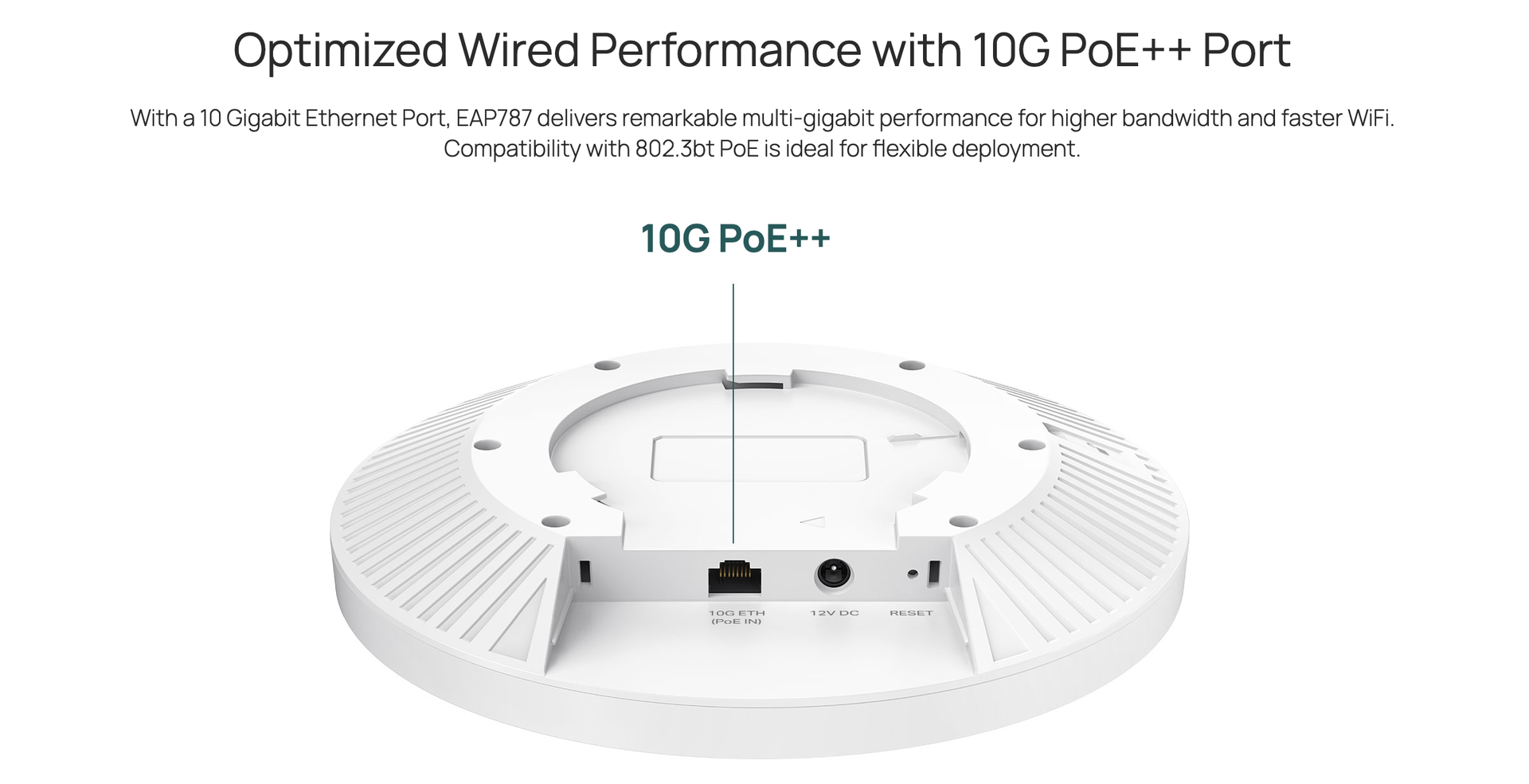

| Interface | 1× 10G/2.5G Ethernet Port |
|---|
| Knop | Reset |
|---|
| Uitgangsvermogen | 802.3bt/at PoE or 12V/2.5A DC |
|---|
| Energieverbruik | • 26.3 W (For PoE);
• 22.4 W (For DC) |
|---|

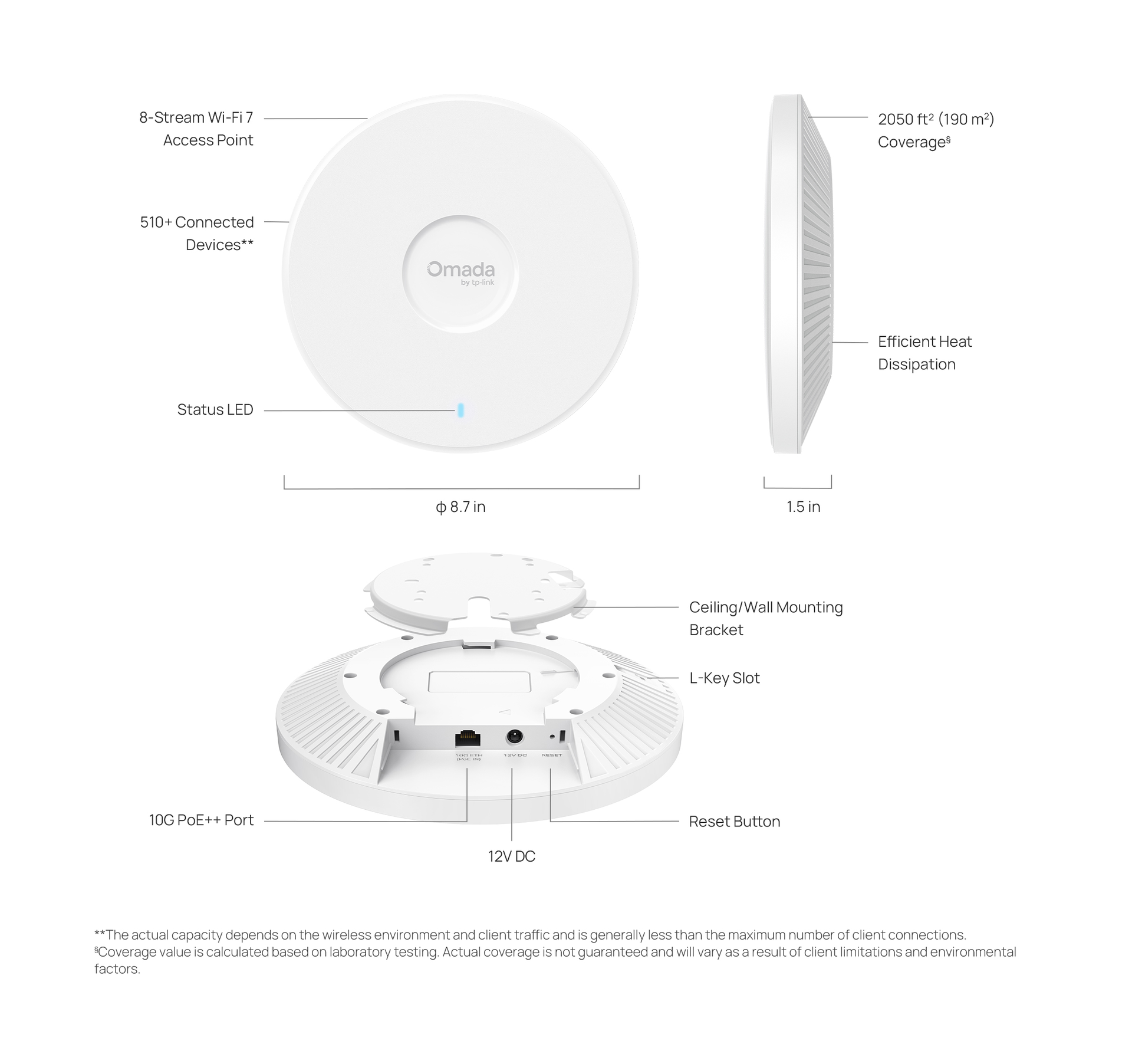

| Afmetingen ( B x D x H ) | 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) |
|---|
| Antenne | • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 4× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
|
|---|
| Bluetooth | 1 × 5 dBi (peak gain), Internal antenna module
*Firmware update may be required. |
|---|
| Montage | Ceiling / Wall/ Junction Box Mounting (Kits Included) |
|---|
| Draadloze Functies |
|---|
| Coverage | 2050 ft² (190 m²)* |
|---|
| Concurrent Clients | 510+** |
|---|
| Standaarden voor Draadloze Netwerken | IEEE 802.11 a/b/g/n/ac/ax/be |
|---|
| Frequentie | 6 GHz, 5 GHz, and 2.4 GHz |
|---|

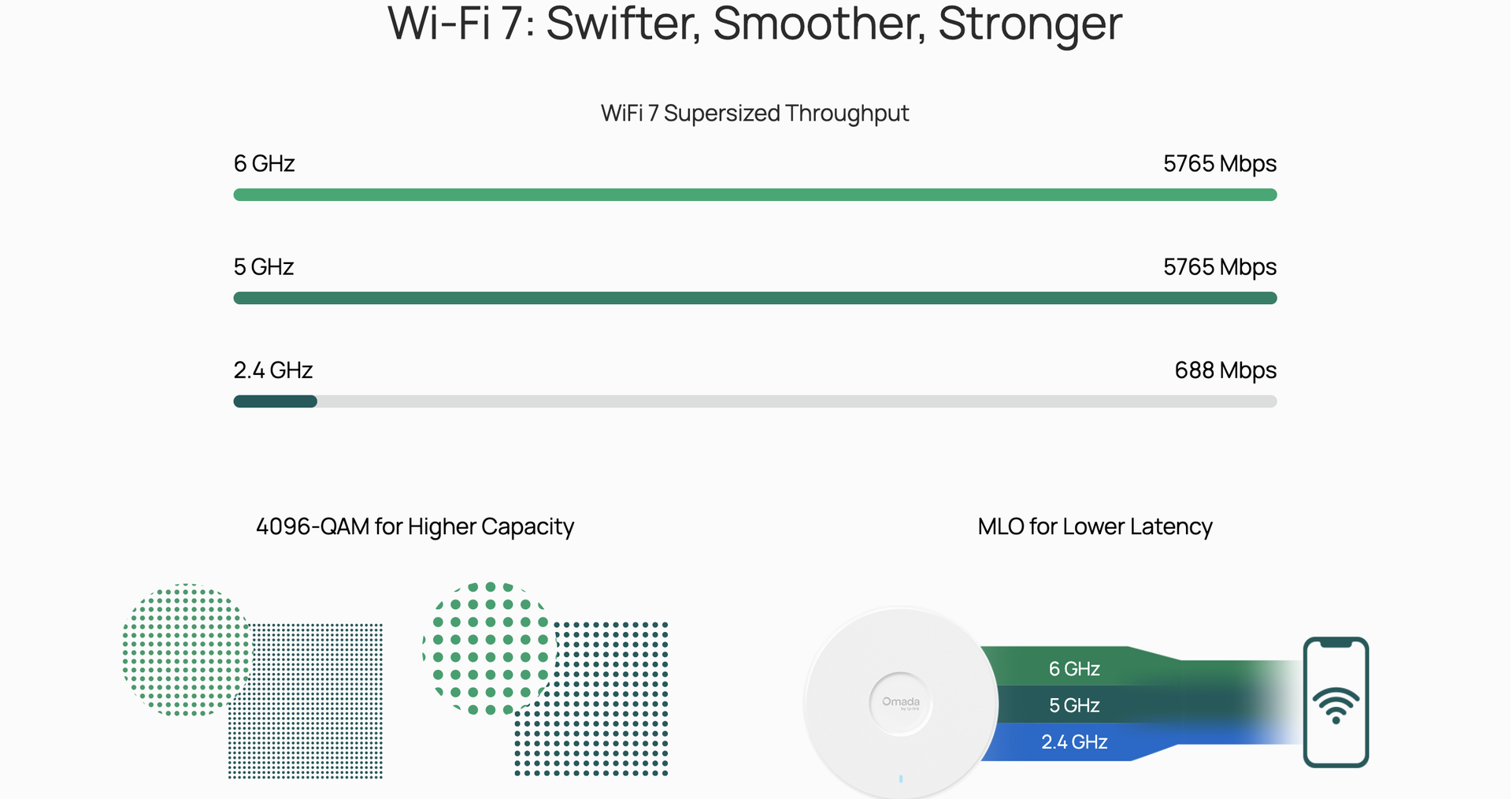

| Overdrachtssnelheid | 688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz)†
|
|---|
| Draadloze Functies | • 320 MHz Bandwidth‡
• MLO‡
• 4K-QAM‡
• Multi-RUs‡
• Seamless Roaming(802.11k/v/r)
• MU-MIMO‡
• Mesh△
• BSS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication |
|---|
| Draadloze Beveiliging | • Captive Portal Authentication△
• Access Control
• Mac Filter
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
|---|
| Overdrachtsvermogen | 6-20 dBm (2.4 GHz, EIRP)
9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)
9-30 dBm (5 GHz, U-NII-2C, EIRP)
6-23 dBm (6 GHz, EIRP) |
|---|
| Beheer |
|---|
| Omada App | Yes |
|---|

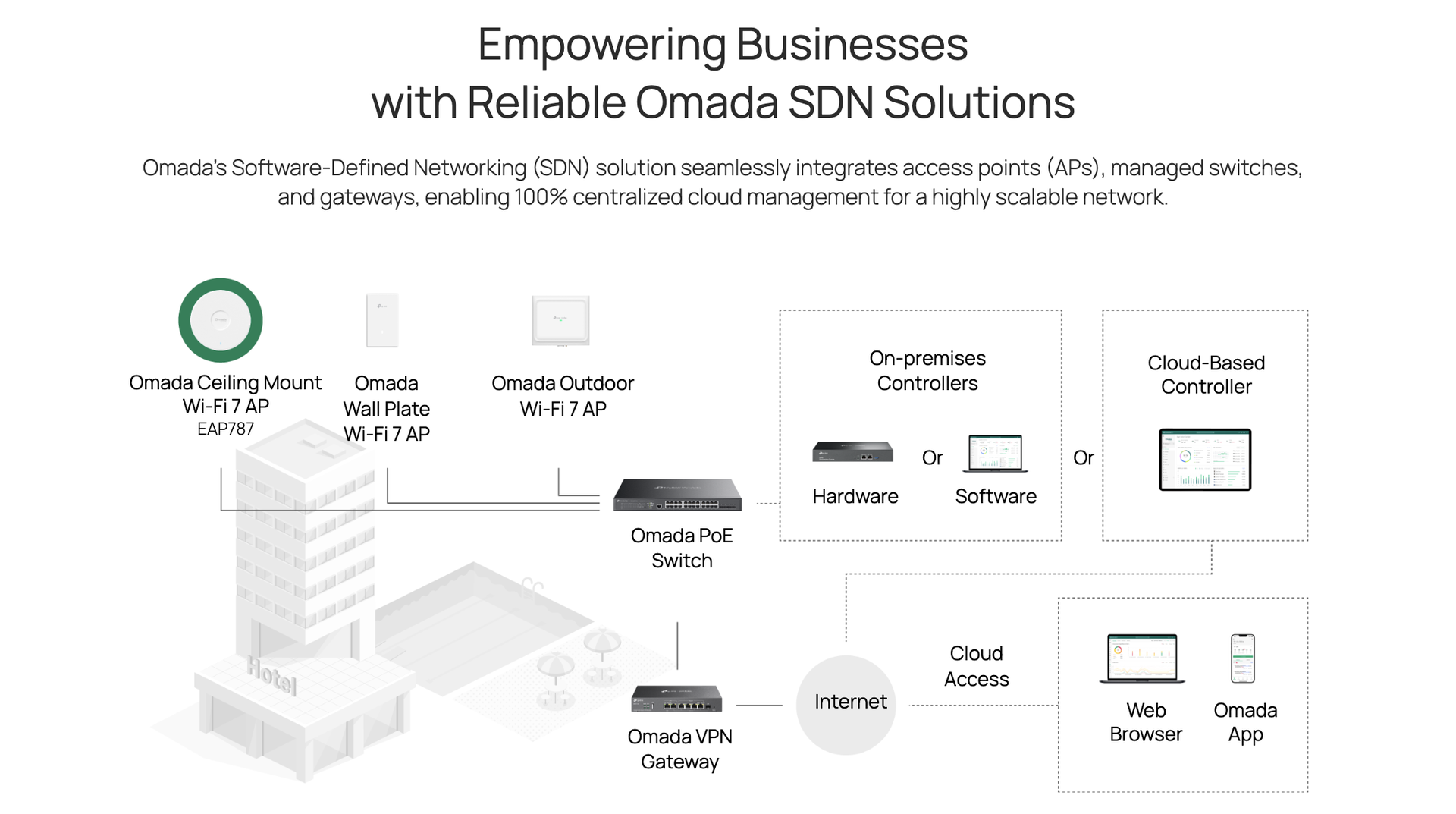

| Centralized Management | • Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller
|
|---|
| Cloud Access | Yes. Require the use of an Omada controller. |
|---|
| Email Notificaties | Yes |
|---|
| LED Aan/Uit Controle | Yes |
|---|
| Management MAC Toegangscontrole | Yes |
|---|
| SNMP | v1, v2c, v3 |
|---|
| System Logging Local/Remote Syslog | Yes |
|---|
| Web-based Management | Yes |
|---|
| Overige |
|---|
| Certificatie | CE, FCC, RoHS, IC |
|---|
| Pakketinhoud | • EAP787
• Installation Guide
• Ceiling/Wall/Junction Box Mounting Kit
Note: Power Adapter is NOT included. |
|---|
| Omgeving | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing; |
|---|
§Dedicated RF Scanning requires the use of an Omada controller (V6.0 or above).
#AFC availability varies by region and country. For supported areas, please visit: https://www.omadanetworks.com/support/faq/4373/
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 240 MHz Bandwidth, 160 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
