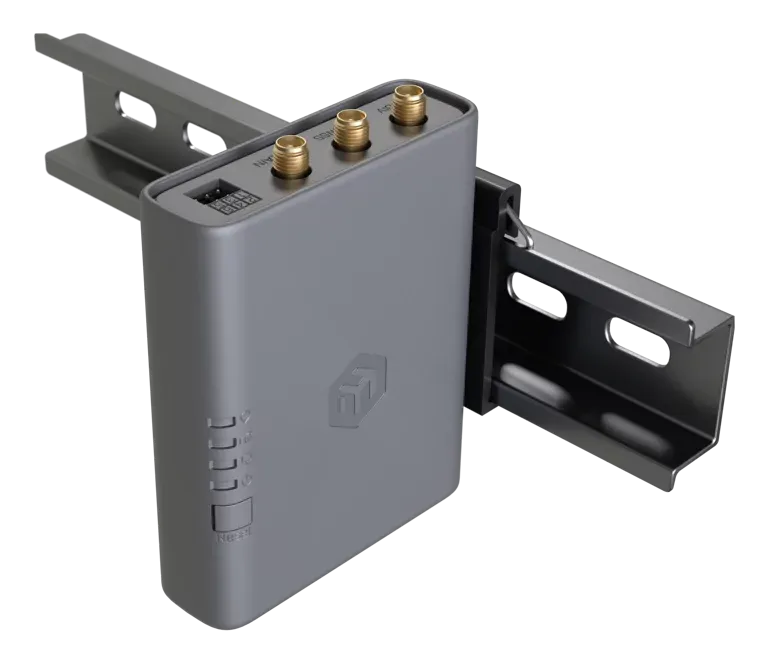

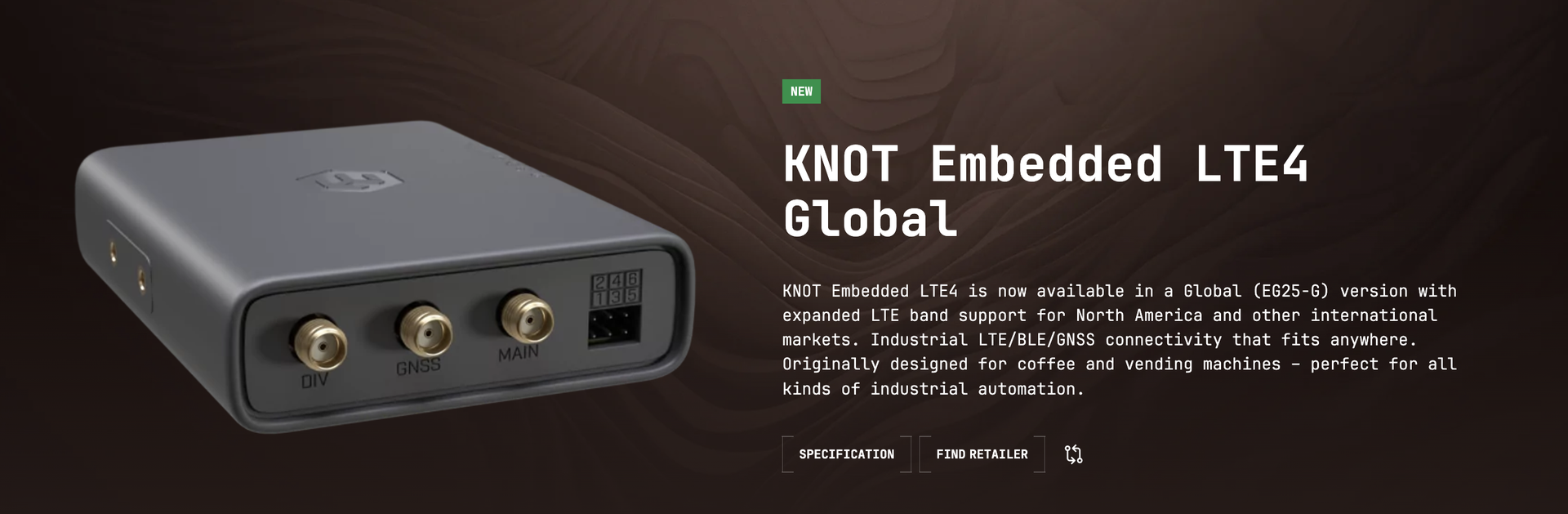

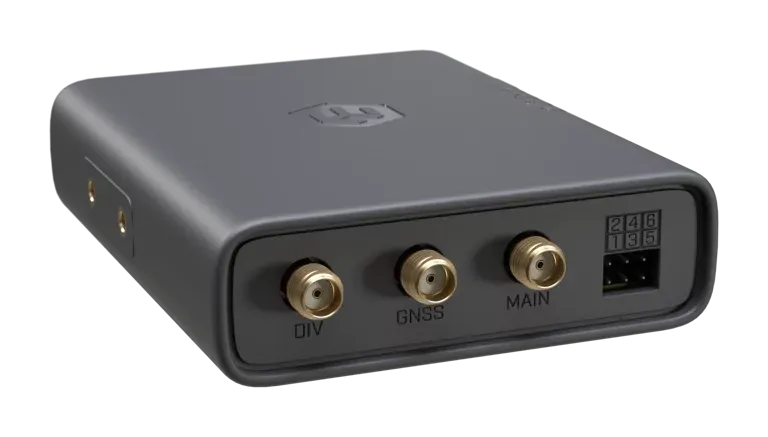

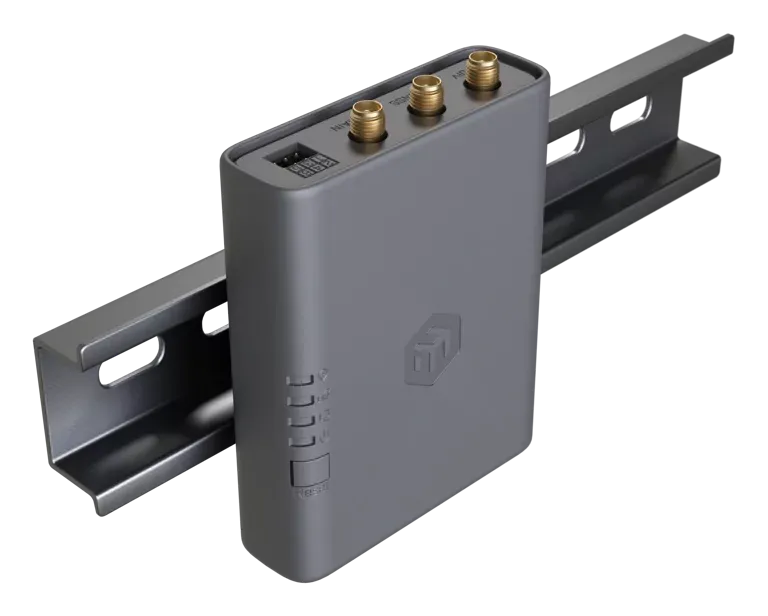

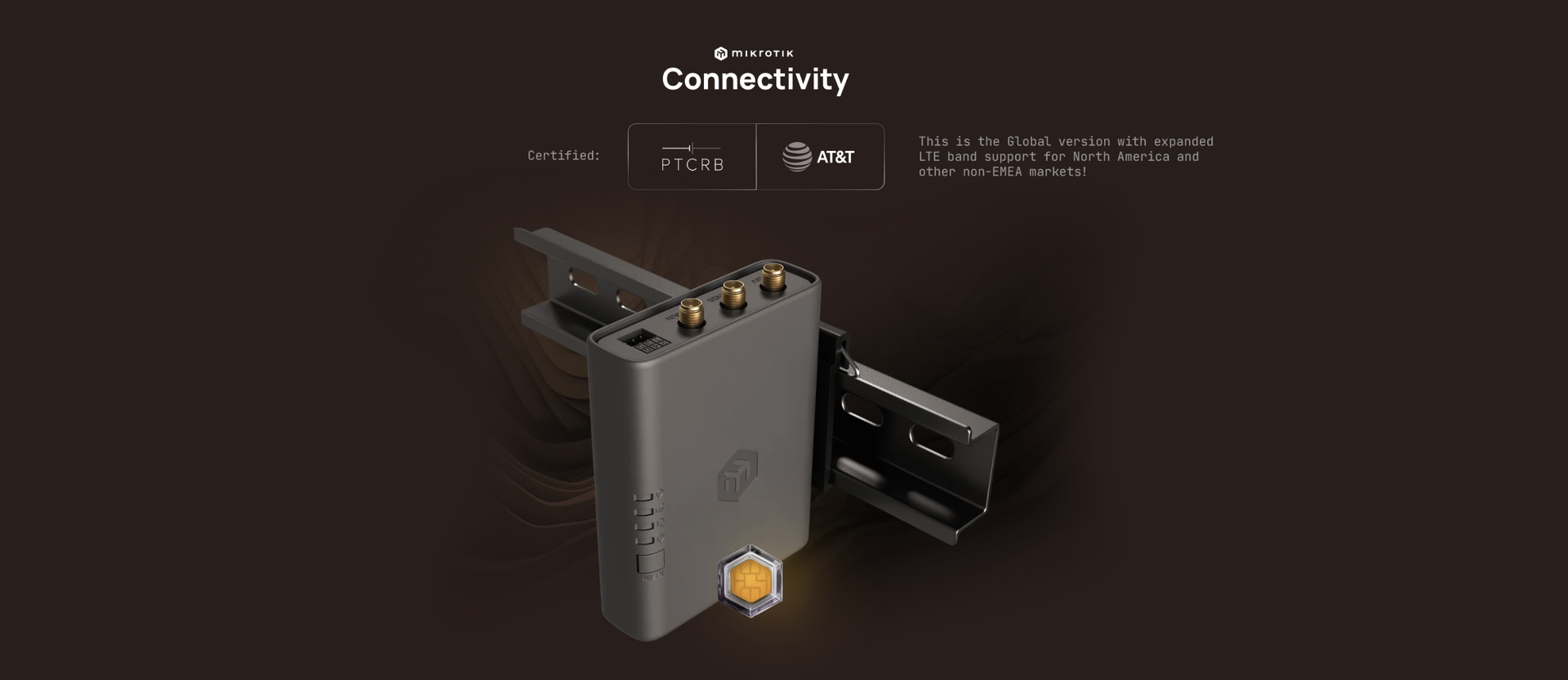

Mikrotik KNOT Embedded LTE-4

Specification

• Product codeEG25-G&KNe
• Suggested price$89.00
• ArchitectureARM 32bit
• CPUCortex A7
• CPU core count1
• CPU nominal frequency800 MHz
• RouterOS license3
• Operating SystemRouterOS v7
• Size of RAM256 MB
• Storage size256 MB
• Storage typeNAND
• MTBFApproximately 100'000 hours at 25C
• Tested ambient temperature-40°C to 70°C

• Number of DC inputs2 (PoE-IN, USB-C)
• Max power consumption6 W
• PoE in802.3af/at
• Cooling typePassive
• PoE in input Voltage12-57 V
• USB C input Voltage5 V

• 2G CategoryClass12
• 2G bands2 (1900MHz)
  3 (1800MHz)
  5 (850MHz)
  8 (900MHz)

• 3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands1 (2100MHz)
  2 (1900MHz)
  4 (1700MHz)
  5 (850MHz)
  6 (850 MHz)
  8 (900MHz)
  19 (800 MHz)

• LTE Category4 (150Mbps Downlink, 50Mbps Uplink)
• MIMO DL2x2
• MIMO UL1x1
• LTE FDD bands1 (2100MHz)
  2 (1900MHz)
  3 (1800MHz)
  4 (1700MHz)
  5 (850MHz)
  7 (2600MHz)
  8 (900 MHz)
  12 (700MHz)
  13 (700 MHz)
  18 (800 MHz)
  19 (800 MHz)
  20 (800MHz)
  25 (1900MHz)
  26 (850MHz)
  28 (700MHz)

• LTE TDD bands38 (2600MHz)
  39 (1900MHz)
  40 (2300MHz)
  41 (2500MHz)

• TAC01673800

• 10/100/1000 Ethernet ports1
• Number of 1G Ethernet ports with Reverse PoE (PoE-in)1

• Number of SIM slots1 Modem (Nano SIM)

• CPU temperature monitorYes
• PCB temperature monitorYes
• Bluetooth version5.4
• GPS RF connector typeSMA
• eSIMYes

• CertificationCE, FCC, IC, EAC, ROHS
• IP20
