ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ (65W PoE Budget, 250m PoE)

https://www.pruvision.eu/web/image/product.template/6744/image_1920?unique=35c234b
(0 beoordeling)

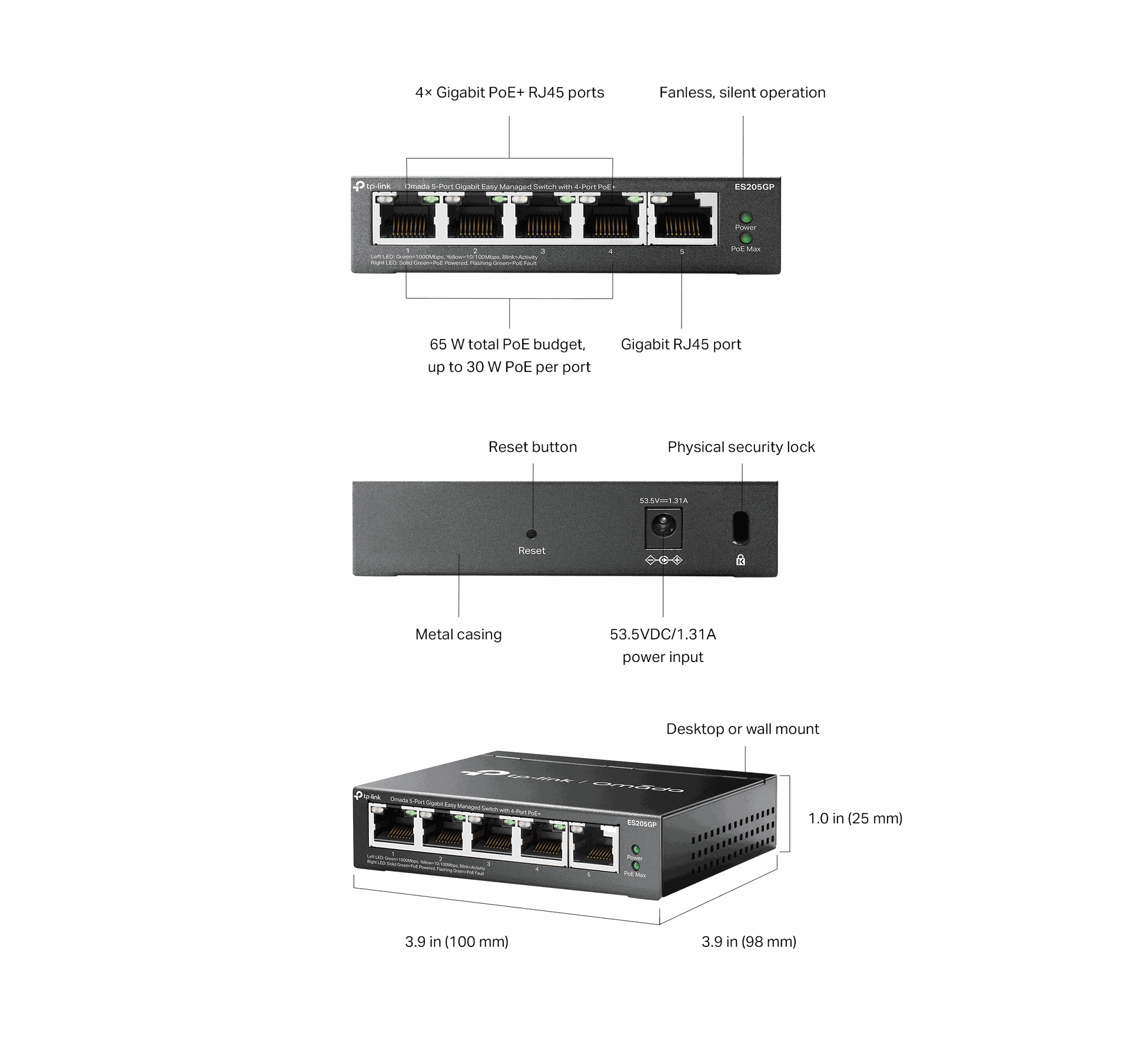

  • 5× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design
Functionaliteit van de Hardware
Interface• 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+)
• Auto-Negotiation/Auto MDI/MDIX
Ventilator AantalFanless
Installation• Desktop

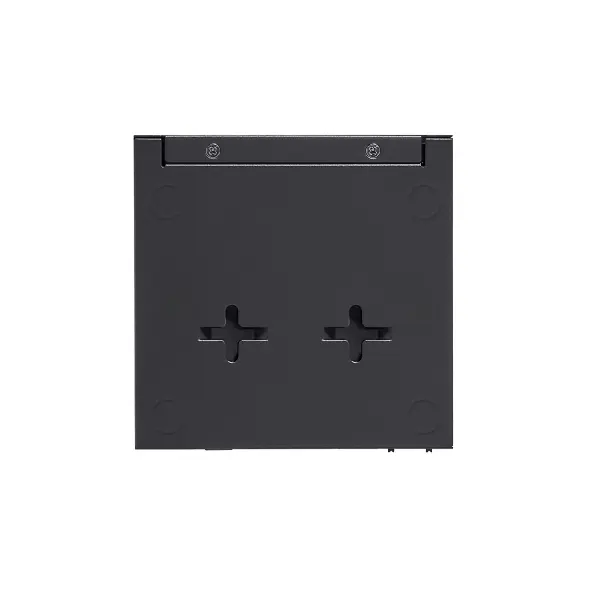

• Wall Mount
Physical Security Lock

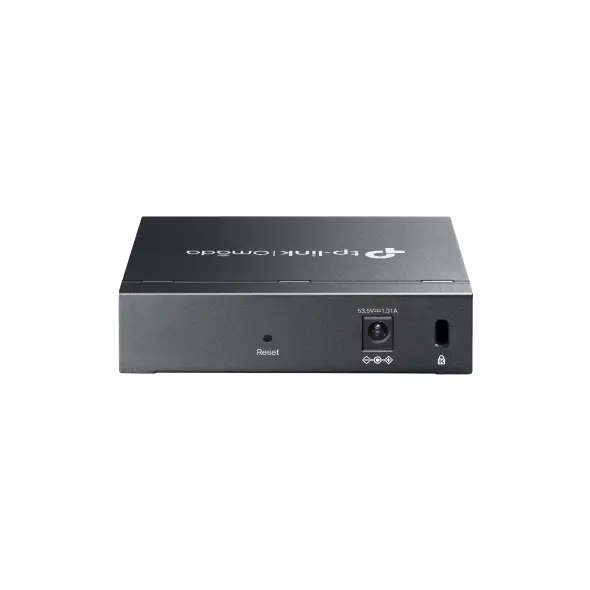

UitgangsvermogenDC Power Adapter (Output: 53.5V DC / 1.31A)
PoE Ports (RJ45)• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65 W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Afmetingen ( B x D x H )3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Surge Protection±6kV
Prestatie
Schakelvermogen10 Gbps
Packet Forwarding Tarief7.4 Mpps
MAC Address Table8K
Packet Buffer Geheugen4 Mbit
Jumbo Frame15 KB
Functionaliteit van de Software
Kwaliteit van de Dienst (QoS)• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
L2-Functionaliteit• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmissie MethodeStore-And-Forward
Beheer
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management Features• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
Overige
CertificatieFCC, CE, RoHS
Pakketinhoud• ES205GP
• Power Adapter
• Power Cord
• Rubber Feet
• Installation Guide
Omgeving• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

54,16 € 54.16 EUR 54,16 € Exclusief btw

54,16 € Exclusief btw
